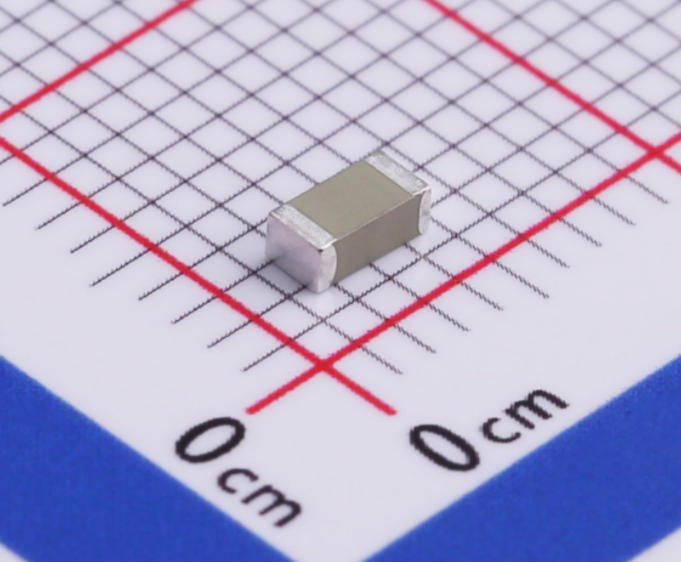

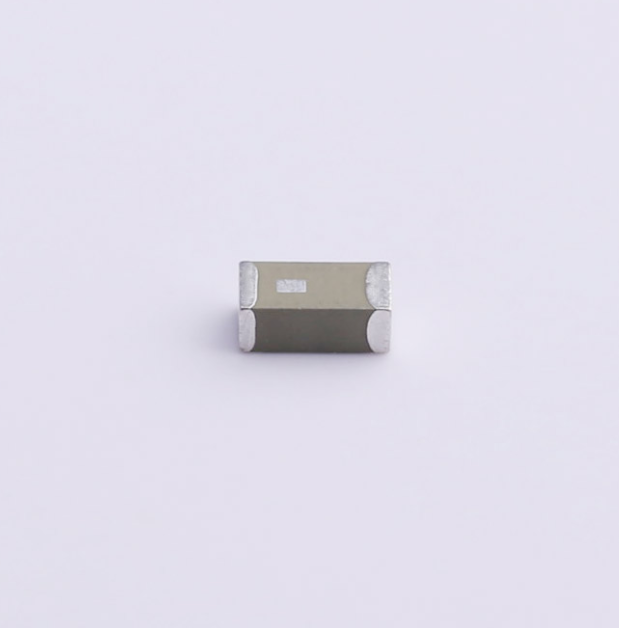

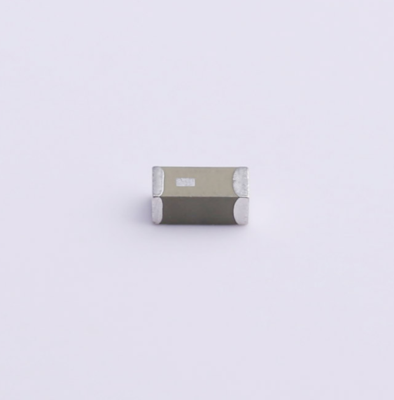

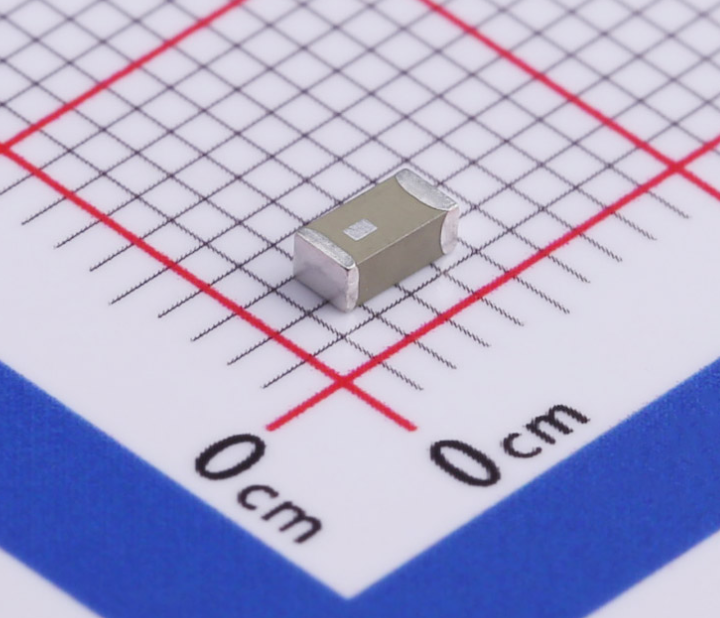

Product Name: Chip Bluetooth Patch 3.2x1.6 Antenna - OP-ANE3216A60

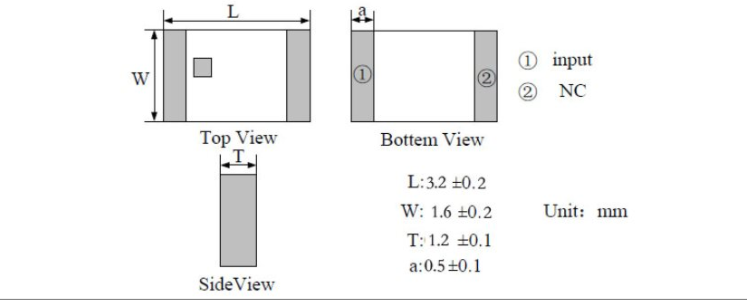

Product Overview: OP-ANE3216A60 Is An Ultra-Small Bluetooth Smd Antenna With A Size Of 3.2x1.6mm, Specially Designed For Bluetooth Devices To Achieve Efficient Wireless Connection.
Main Features: This Antenna Integrates Low-Section Design And High-Performance Bluetooth Band Coverage, Ensuring Stable Signal Transmission And Reception While Reducing Space Occupied.
Product Advantages: OP-ANE3216A60 Antennas Are The Best Choice For Bluetooth Devices To Improve Wireless Communication Quality With Their Small Size, Excellent Performance Price Ratio And Wide Compatibility.
Performance Parameters:
Attributes
Parameter Value
Center Frequency
2875MHz
Bandwidth
100MHz typ.
Impedance
50Ω
Peak Gain
5.19dBi
Polarization Method
Linear
Direction Angle
Omnidirectional
Standing Wave Ratio
≤2.0
Application Field: Widely Applicable To All Kinds Of Portable Bluetooth Devices Such As Smart Watch, Wireless Earphones, Health Monitoring Equipment, Smart Home Controllers, Etc.

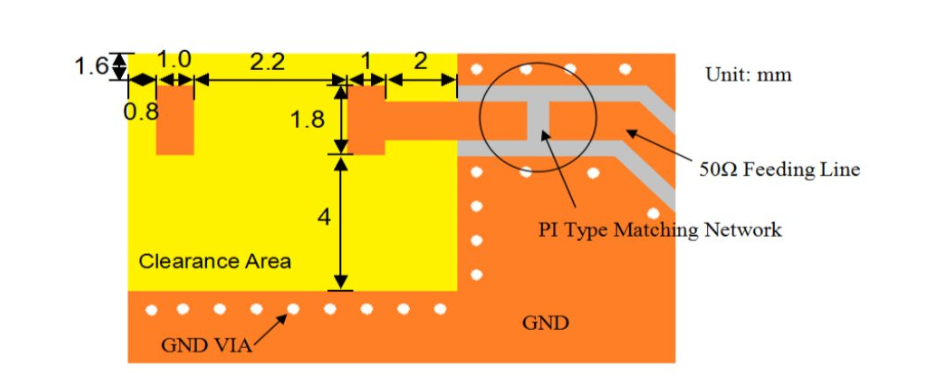

Precautions: When Installing, Please Ensure That There Is No Metal Occlusion Around The Antenna To Avoid Affecting The Signal Quality; Avoid Mechanical Stress Acting On The Antenna And Maintain Its Structural Integrity.
Product Summary: Chip Bluetooth Smd 3.2x1.6 Antenna KH-3216-A35, With Its Small And Efficient Features, Provides A Stable And Reliable Wireless Connection Solution For Bluetooth Devices.
